　DVI / HDMI Series
Computer Cable > DVI / HDMI Series
　+ Product picture and explanation

Digital Video Interface cable ( DVI) is designed for high speed digital data transmission with great video performance to replace traditional DB15 monitor cable.
Applications:
• Monitor
• DVD players,
• TV sets
• HDTV sets
• video projectors
• Digital CRT displays
There are two DVI standards:
• Dual Link DVI supports 2x165 MHz (2048x1536 at 60 Hz, 1920x1080 at 85 Hz).
A dual link implementation utilizes all 24 of the available pins.
• Single Link DVI supports a maximum bandwidth of 165 MHz (1920x1080 at 60
Hz, 1280x1024 at 85Hz). A single link implementation utilizes 12 of the 24 available pins.

|Prev| Next|
　+Product specification

If want subscriber.Please select the product model number that you want.
Then send out order.We will contribute efforts to you very fast.Thank you

ITEM NO. DESCRIPTION WORK DAY Drawing PIC

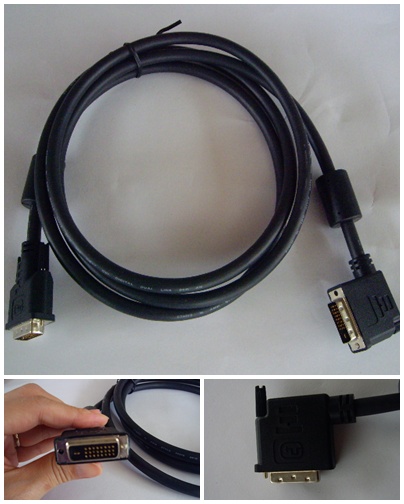

TD-001 DVI 24+1 (M) / 24+1(M) right angle 14 　

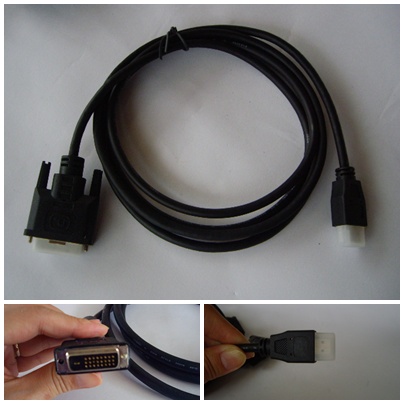

TD-002 DVI 24+1(M) / HDMI 14 　

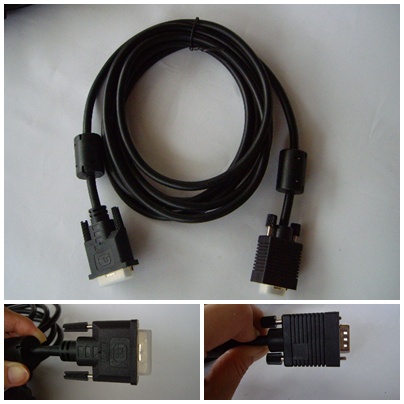

TD-003 DVI 18+5 / HDB 15M 14 　

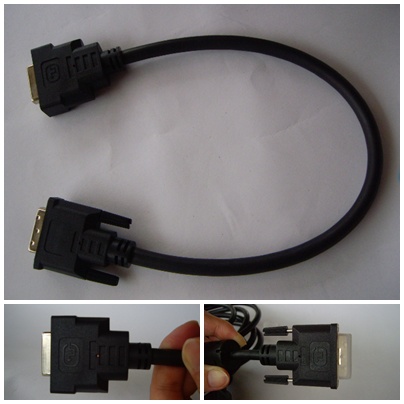

TD-004 DVI 24+1(M) / DVI 24+1(F) 14 　

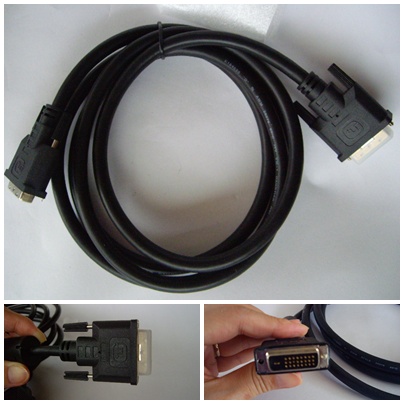

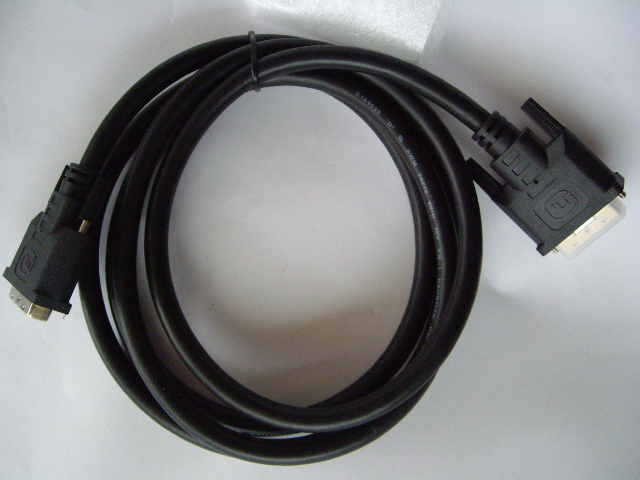

TD-005 DVI 24+1(M) / DVI24+1(M) 14 　

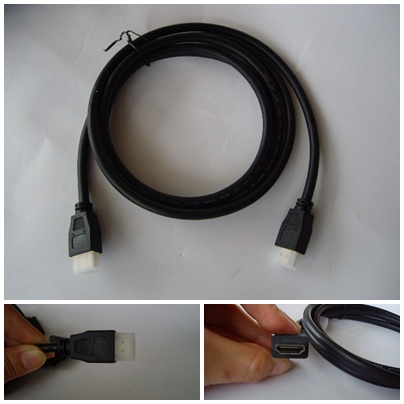

TD-006 HDMI CABLE 14 　

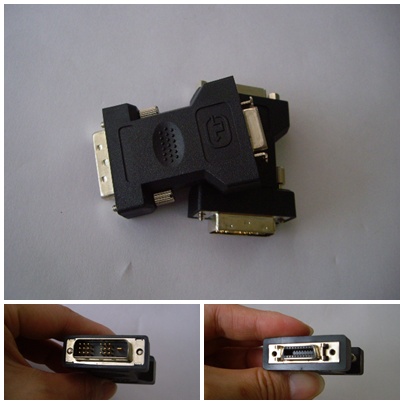

TD-007 Adaptor DVI18+1(M) / HPDB20(F) 14 　

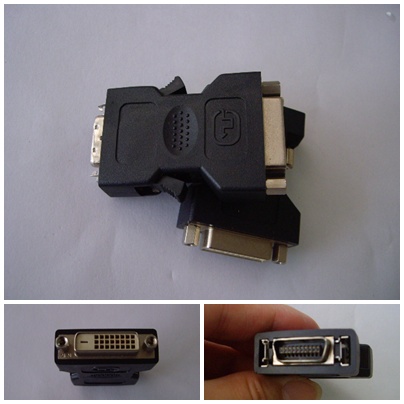

TD-008 Adaptor DVI 24+1(F) / HPDB20(M) 14 　

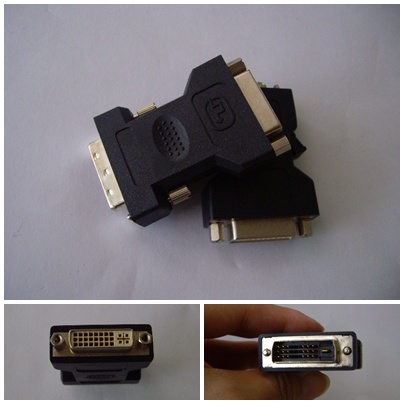

TD-009 Adaptor DVI 24+5(F) / DVI 18+1(M) 14 　

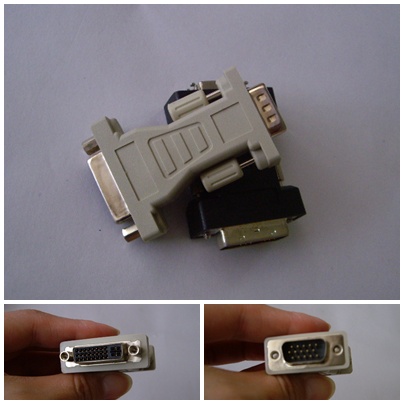

TD-010 Adaptor DVI 24+5(F) / DB15(M) 14 　
