VHDCI (Ultra SCSI)

Very High Density Cable Interconnect, VHDCI is a small 68-pin (0.8mm) connector used for UltraSCSI and other peripheral devices such as scanners or external storage devices. VHDCI allows for the placement of four SCSI connectors on the back of a single PC Card slot. VHDCI is also found on SCSI 5 host cards to connect peripherals to a SCSI 5 host controller or to each other.
Applications:
• Scanner
• External Storage Devices
• Industrial PC controller boards

TCI Cable is specialized in SCSI data cables for any Sub-System : SCSI-1,SCSI-2,SCSI-3,FAST-20,FAST-40,RAID,ULTRA-SCSI,ETC.

TCI Cable is the most well known for superior quality in SCSI HPDB 100 (MD100) SCSI HPC 100 to support Industrial PC controller boards.

|Prev| Next|
 +Product specification

If want subscriber.Please select the product model number that you want.
Then send out order.We will contribute efforts to you very fast.Thank you

ITEM NO. DESCRIPTION WORK DAY Drawing PIC

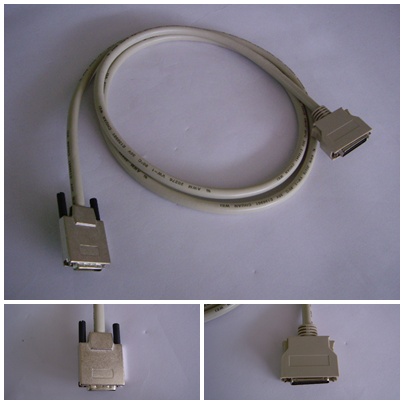

TV-001 VHDCI 36M / HP36M 7

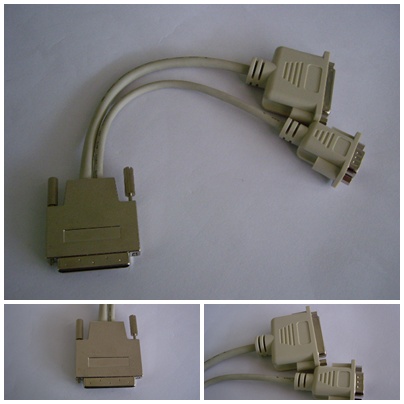

TV-002 VHDCI 68M / DB9M+DB25F 7

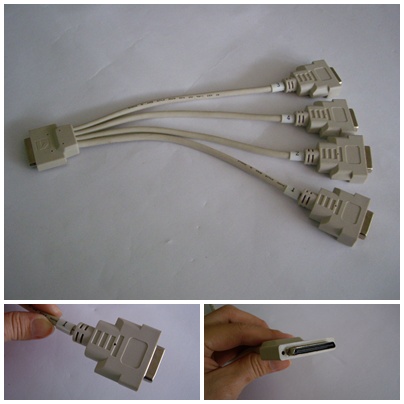

TV-003 VHDCI 68M / DVI 24+1(F)*4 7

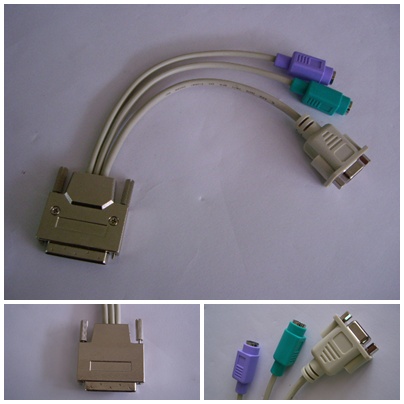

TV-004 VHDCI 68M / HDB15F+MDIN6F*2 50
TV-005 VHDCI 14 M/M 50

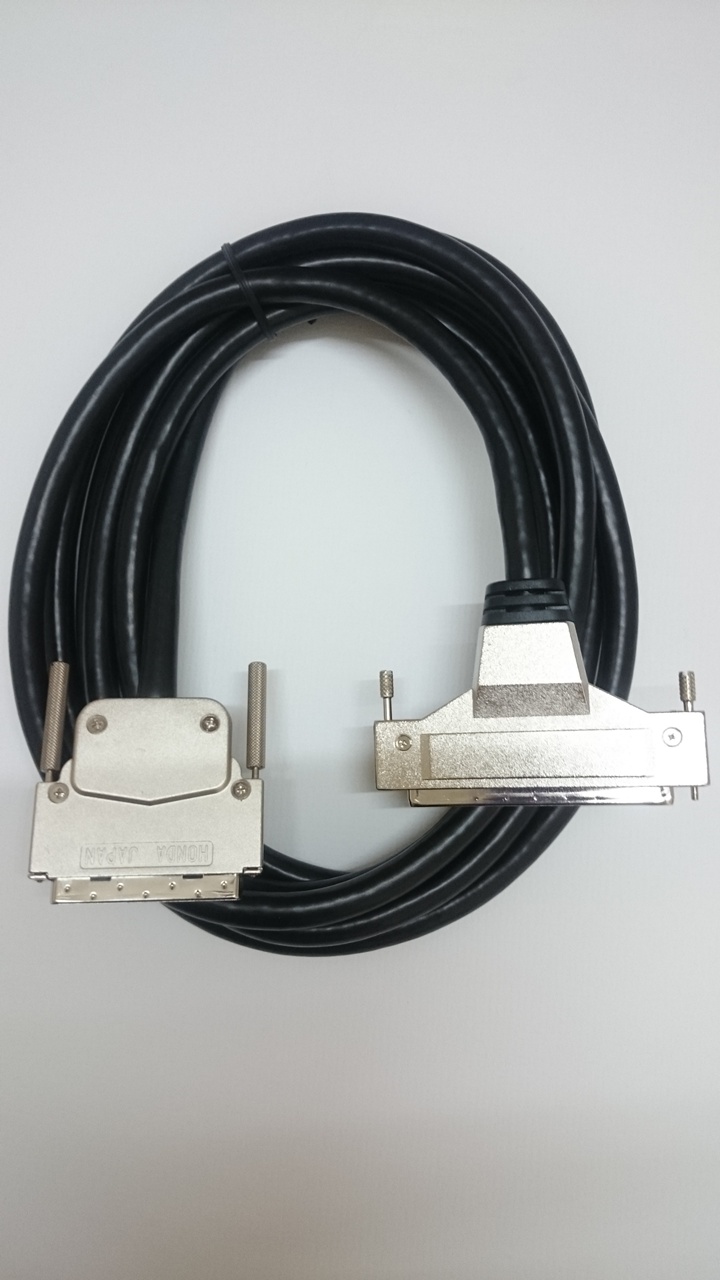

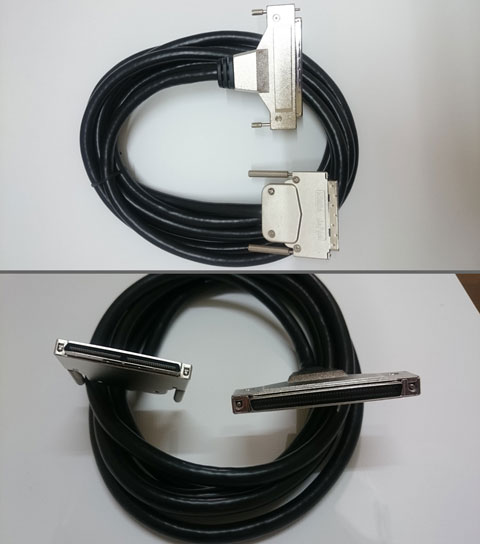

TV-006 VHDCI 100M/M 50
